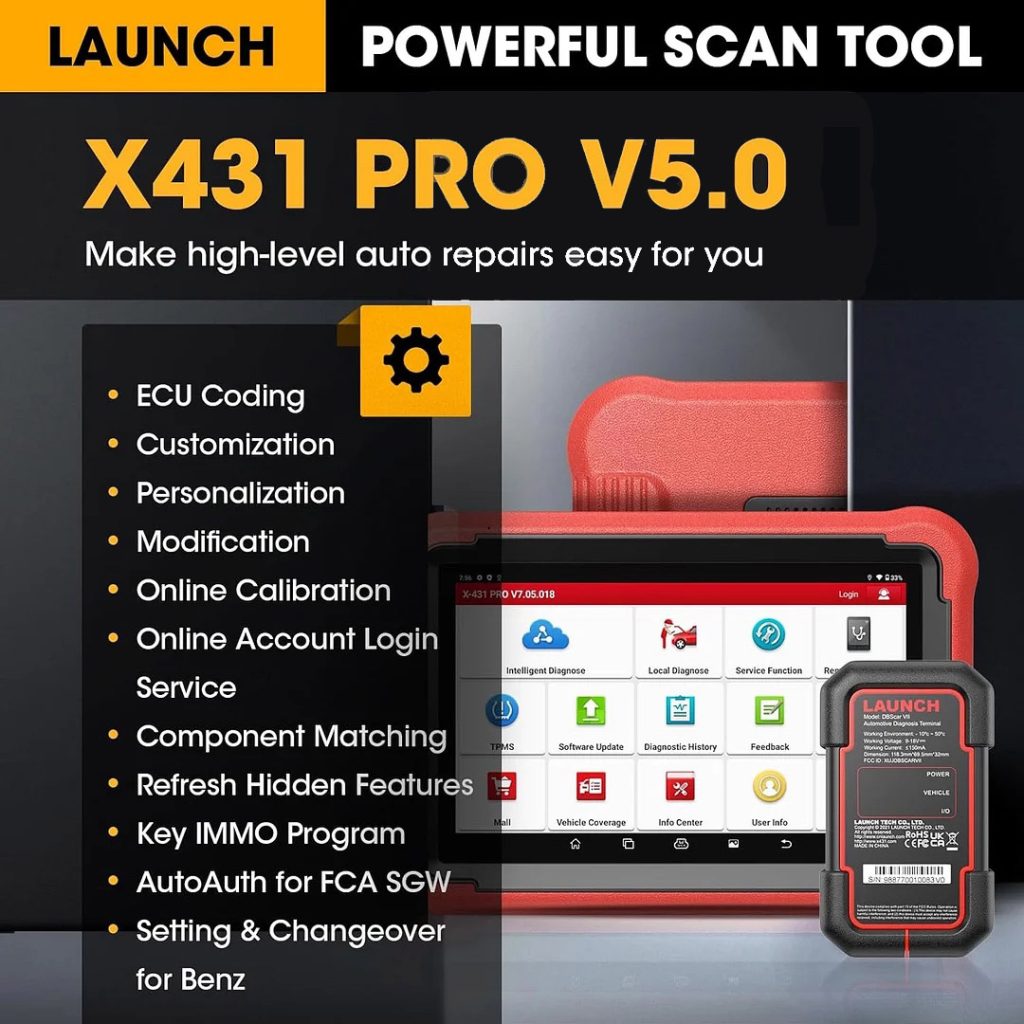

LAUNCH X431 PRO v5.0

Launch X431 PRO/PROS V5.0 Diagnostic Tool 37 Special Functions Intelligent Diagnose TPMS Supports CANFD and DOIP

Launch X431 PROS V5.0 is a new generation of 8-inch automotive intelligent diagnostic tool with high configuration and super performance. The tablet is developed based on the Android 10.0 system, using a 2.0Ghz 4-core efficient processor, 4GB RAM + 64GB ROM large storage, and equipped with a high-end battery to make diagnosis faster, more stable and longer-lasting. Launch X431 PROS V5.0 can cover more than 98% of cars on the market.  It supports fault diagnosis for all models and systems, and supports code reading, code clearing, data stream reading, special functions, action testing, coding, matching, and powerful diagnostic functions.

Launch X431 PROS V5.0/PRO v5.0 Features:

• The host tablet has updated version system, larger 64GB storage, and longer battery life, making diagnosis faster, and more stable.
• Upgraded to DBSCAR VII diagnostic connector, supports CANFD and DOIP
• Wide car model coverage, strong diagnostic function, supports full system diagnosis of all car models
• Support reading error code reading, code clearing, reading data stream, action testing, ECU coding, matching, etc.
• Supports tire pressure activation, programming, learning and detection functions with a tire pressure gun
• Support IMMO programming and other functions with X-PROG 3
• Support Volkswagen, Audi and other guided e functions

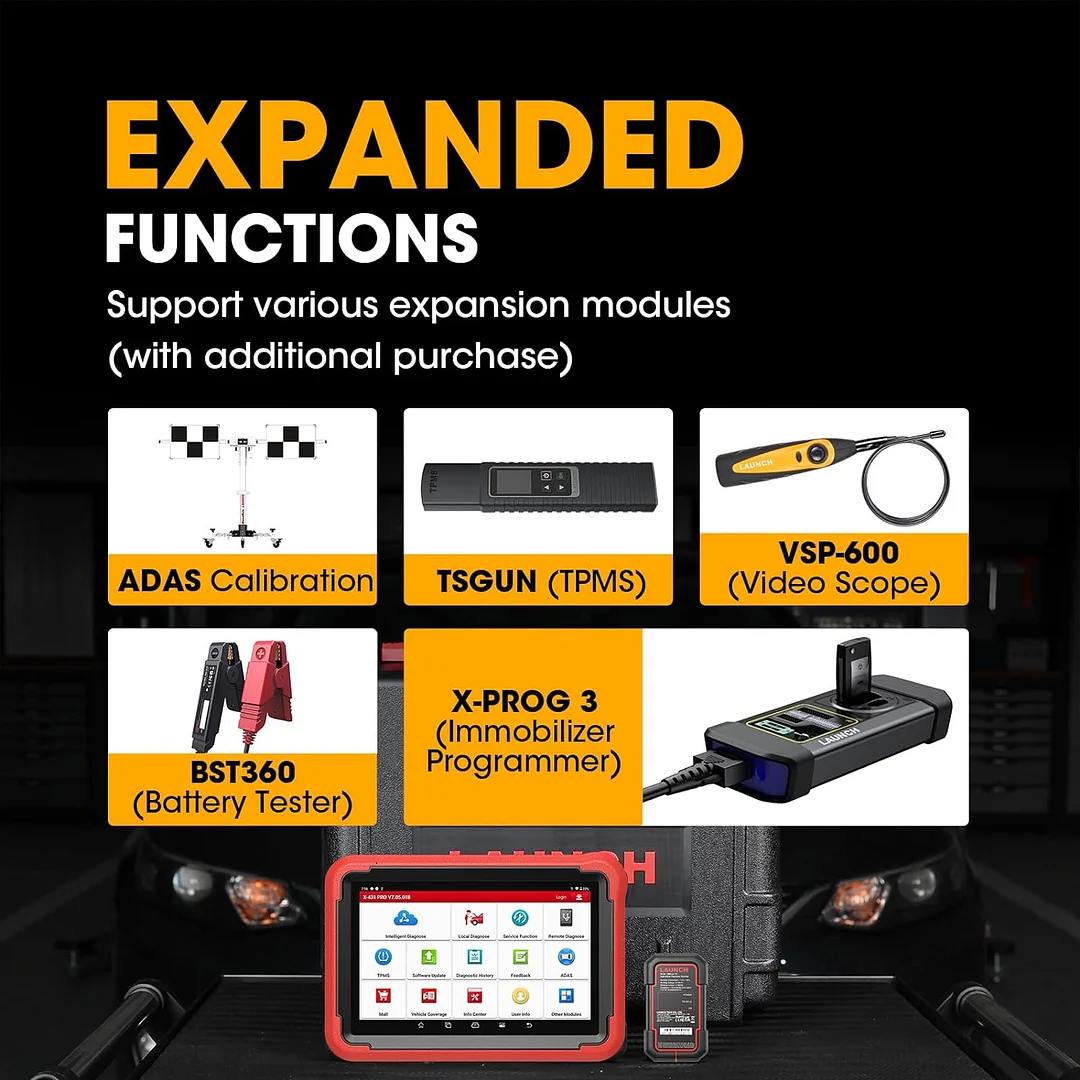

• Multiple expansion modules support: endoscope, BST-360, oscilloscope, sensor, wifi printer
• Supports 37 special functions such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, etc.
• Support VIN code intelligent identification function to quickly enter diagnosis

Intelligent Diagnose

LAUNCH has accumulated automotive diagnostic technology for more than 20 years, and was the first to propose intelligent diagnosis technology. Through “intelligent diagnose”, it can quickly read the vehicle VIN code, quickly enter the diagnosis, and review historical diagnosis records.

37 Special Functions

1. ABS BleedingWhen the ABS contains air, ABS bleeding function must be done to bleed the brake system to restore ABS brake sensitivity.

2. TPMS ResetIf tire pressure is too low, the tire pressure monitoring device is replaced or installed, The tire pressure resett function must be performed to reset tire pressure and turn off the tire pressure MIL.

3. Oil Lamp ResetAllows you to perform a service indicators reset for a new calculation of Engine Oil life system once oil is changed.

4. Electronic Throttle Sensor ResetInitialize and reset the throttle actuator so that the learning value of the ECU returns to the initial factory state.

5. Injector CodingAfter the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

6. SAS ResetIt helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

7. Brake-pad ResetTo deactivate and activate the brake control systems, open and close brake pads, and set brakes after disc or pad replacement.

8. Gear LearningPerform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

9. IMMO ServicePrevent the car from being used by unauthorised keys, the anti-theft key matching function must be performed so that the IMMO system on the car identifies and authorises remote control keys to normally use the car.

10. Battery MatchingEnables you to perform a resetting operation on the monitoring unit of the battery, in which the original low battery fault information will be cleared.

11. DPF RegenerationIt is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter systems with DPF.

12. EGR AdaptionThis function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is cleaned or replaced.

13. Suspension MatchingWhen replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

14. NOx Sensor ResetIf the NOx fault is re-initialized or NOx catalytic converter is replaced, you need to reset the catalytic converter learned value stored in the engine ECU.

15. Tyre ResetThis function is used to set the size parameters of the modified or replaced tire.

16. Windows CalibrationThis feature is designed to perform door window matching to recover ECU initial memory.

17. Stop-start ResetThis function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is the vehicle equipped with hidden function and hardware support)

18. AC InitializationAC system relearn/initialisation must be done when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.

19. AdBlue ResetAfter the diesel exhaust treatment fluid (car urea) is replaced or filled up, the urea reset operation is required.

20. AFS Headlamp ResetThis function enables you to initialize the adaptive headlamp system.

21. A/F ResetThis function is applied to set or learn air/fuel rate parameters.

22. Gearbox ResetThis function enables you to complete the gearbox self-learning to improve gear-shifting quality

23. Coolant BleedingUse this function to activate the electronic water pump before venting the cooling system.

24. Transport ModeTo lower vehicle power consumption, the user may perform the following operations: limit vehicle speed, minimise network use when door opens and disable the remote key, etc.

25. Seat CalibrationThis function is applied to match the seats with memory functions that are replaced and repaired.

26. High Voltage Battery DetectionThis function is used for high-voltage battery diagnosis and status information detection.

27. Sunroof InitializationSet the sunroof to lock off, closed it when it rains, set sliding/tilting, set temperature threshold outside the car, etc.

28. Engine Power Balance MonitoringThis function is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.

29. Language ChangeThis function is used to change the system language of the vehicle center console. note: you need to have a language pack to do a language change

30. Gas Particulate Filter (GPF) RegenerationThis function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resulting from a long time service of the GPF.

31. Intelligent Cruise Control System ResetThis function is used to match the intelligent cruise control module after it is replaced or repaired.

32. Reset Program (Extension –  (Note: Available functions vary depending on the vehicle make, year, and model.)

NEWLY ADDED FUNTIONS

33. Clutch Matching

34. ECU Reset

35. FRM Module Reset

36. Motor Angle Calibration

37. Turbocharger Matching

Software Upgrade

Launch X431 PROS Supports one-click online upgrade of client software, vehicle model software, and connector firmware. The new smart selection upgrade function can automatically filter out commonly used software based on user software usage for users to quickly upgrade.
