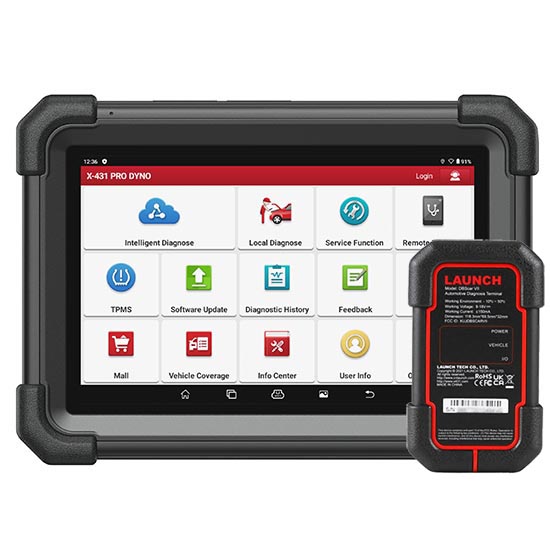

Launch X431 PRO (v5.0) Dyno Bi-Directional Diagnostic Tool with ECU Coding (OBD1 adapters set included)

• Full system OE-level diagnostics on 1996 and newer U.S, European and Asian vehicles.
• Automatically identify vehicle VINs.
• Full diagnostic functionality includes comprehensive OBD II diagnostics, read/clear DTCs, bi-directional control, remote, diagnosis, live data streaming, coding etc.
• Review the previous diagnostic reports via the diagnostic history
• 37 Service Functions:  Reset Service(MIL), Maintenance Confirmation, Injection Quantity Adjustment, Particulate Filter, Reset Pressure Differential Sensor Injector Coding. Reset Pressure Limiting Valve Bleeding, The Adblue Circuit, Trip Reset, VGT Electronic Actuator Installation and Calibration, DPF Regeneration, Parked SCR Efficiency Test, DPF Ash Accumulator Reset, Turbo matching, FRM Reset
• Idle Speed Adjustment, Speed Limit, Cruise Control, Idle-stop System, PTO, Coolant Level Switch, Exhaust Brake Valve, Intake Air Preheating. Vehicle Speed Controller, Air Conditioner, Oil Pressure Sensor. Electronic Fan, ABS, Automatic Transmission.
• Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
• Optional ADAS calibration capability when paired with the X431 ADAS calibration tools.
• Expand your diagnostic coverage via the “Mall”
• One-Stop info center includes vehicle repair information and latest updates
• Supports 7 Expansion modules

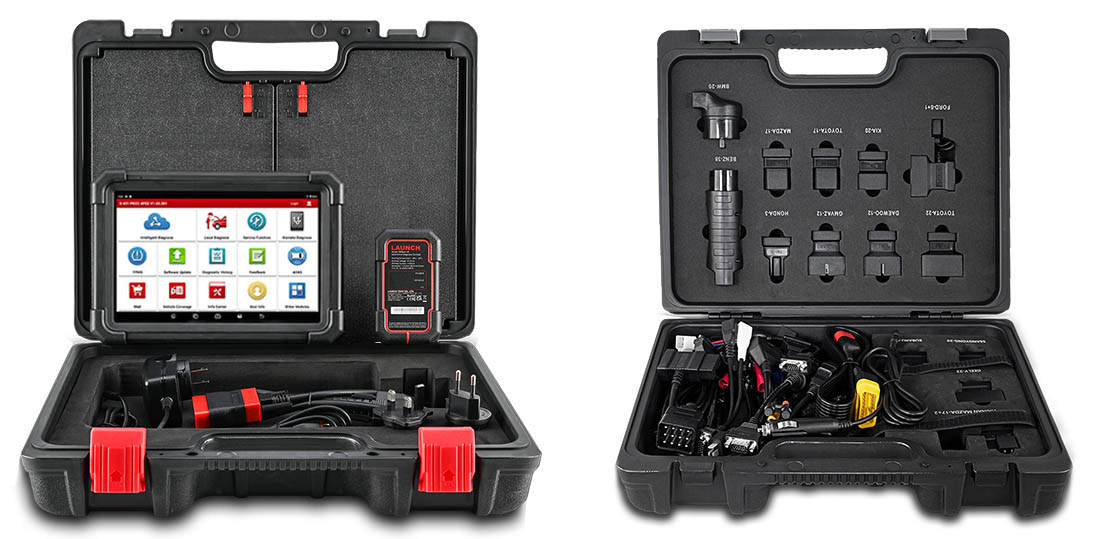

• Full Pre-OBDII Adapter set included (PRO SE v.5.0 includes no adapters and no carry case)
• Covers 99% of cars
• 2 Years Update Free

LAUNCH X431 PRO Dyno can perform a wide range of special functions. These include but are not limited to:

1. ABS Bleeding
When the ABS contains air, ABS bleeding function must be done to bleed the brake system to restore ABS brake sensitivity.

2. TPMS Reset
If tire pressure is too low, the tire pressure monitoring device is replaced or installed, The tire pressure resett function must be performed to reset tire pressure and turn off the tire pressure MIL.

3. Oil Lamp Reset
Allows you to perform a service indicators reset for a new calculation of Engine Oil life system once oil is changed.

4. Electronic Throttle Sensor Reset
Initialize and reset the throttle actuator so that the learning value of the ECU returns to the initial factory state.

5. Injector Coding
After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

6. SAS Reset
It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

7. Brake-pad Reset
To deactivate and activate the brake control systems, open and close brake pads, and set brakes after disc or pad replacement.

8. Gear Learning
Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

9. IMMO Service
Prevent the car from being used by unauthorised keys, the anti-theft key matching function must be performed so that the IMMO system on the car identifies and authorises remote control keys to normally use the car.

10. Battery Matching
Enables you to perform a resetting operation on the monitoring unit of the battery, in which the original low battery fault information will be cleared.

11. DPF Regeneration
It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter systems with DPF.

12. EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is cleaned or replaced.

13. Suspension Matching
When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

14. NOx Sensor Reset
If the NOx fault is re-initialized or NOx catalytic converter is replaced, you need to reset the catalytic converter learned value stored in the engine ECU.

15. Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

16. Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory.

17. Stop-start Reset
This function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is the vehicle equipped with hidden function and hardware support)

18. AC Initialization
AC system relearn/initialisation must be done when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.

19. AdBlue Reset
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, the urea reset operation is required.

20. AFS Headlamp Reset
This function enables you to initialize the adaptive headlamp system.

21. A/F Reset
This function is applied to set or learn air/fuel rate parameters.

22. Gearbox Reset
This function enables you to complete the gearbox self-learning to improve gear-shifting quality

23. Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

24. Transport Mode
To lower vehicle power consumption, the user may perform the following operations: limit vehicle speed, minimise network use when door opens and disable the remote key, etc.

25. Seat Calibration
This function is applied to match the seats with memory functions that are replaced and repaired.

26. High Voltage Battery Detection
This function is used for high-voltage battery diagnosis and status information detection.

27. Sunroof Initialization
Set the sunroof to lock off, closed it when it rains, set sliding/tilting, set temperature threshold outside the car, etc.

28. Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.

29. Language Change
This function is used to change the system language of the vehicle center console. note: you need to have a language pack to do a language change

30. Gas Particulate Filter (GPF) Regeneration
This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resulting from a long time service of the GPF.

31. Intelligent Cruise Control System Reset
This function is used to match the intelligent cruise control module after it is replaced or repaired.

32. Reset Program (Extension –  (Note: Available functions vary depending on the vehicle make, year, and model.)

NEWLY ADDED FUNTIONS

33. Clutch Matching

34. ECU Reset

35. FRM Module Reset

36. Motor Angle Calibration

37. Turbocharger Matching
